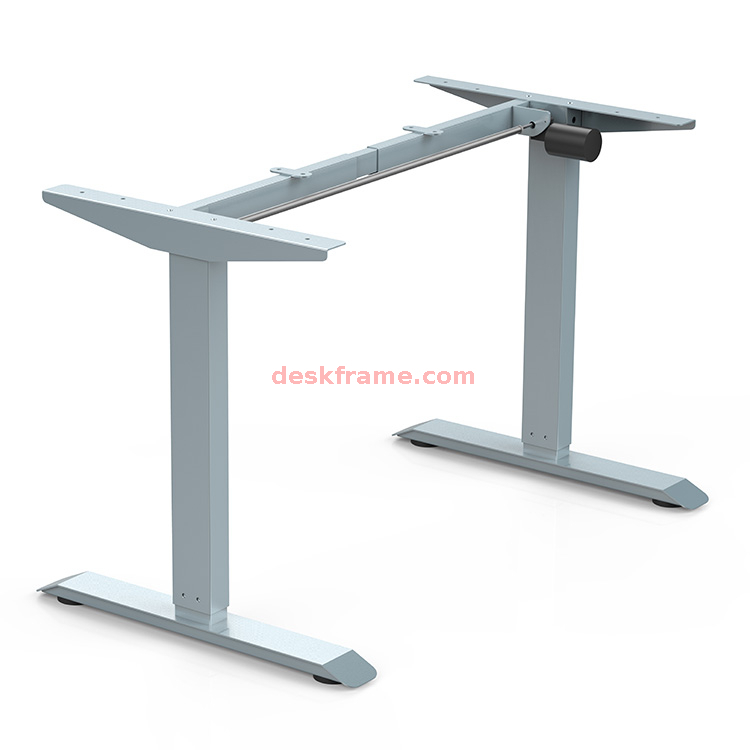

Adjustable Desk Frame Single Motor

Adjustable Desk Frame is a healthy office desk base. It is very popular among the office staffs nowdays. The character of this electric height adjustable desk frame, makes it possible for people to work in different positions. The adjustable desk frame adopts one motor and a push rod to drive the two lifting columns with a optimized speed.and its stability and running performance can fully meet the daily office use. Only one motor is used, the height adjustable desk frame has a higher cost performance. The below is main features of this single motor adjustable desk frame: 1. Newly designed structure guarantees lateral stability; 2. Optimized lifting speed to ensure stable up and down 18mm/s; 3. Pre-assembled screw technology supports simple and fast assembly; 4. Freely adjust the height, width can be adjusted or fixed design; 5. Lower operation noise less than 50db. Contact us to customize your electric height adjustable desk frame today!
Availability:
  • ZDTD-2

  • Zhiding





1 Model ZDTD-2
2 Number of Motor Single motor
3 Lift Column 2 segments
4 Height   adjustable range 700-1150mm
5 Width   adjustable range 1100--1650mm
6 stroke 450mm
7 lifting   speed 18mm/s
8 Operation   noise ≦50db
9 Memory   Setting 4 Presets
10 Heat   protection yes
11 Product   Advantage Whole table stability   system
12 Main   feature Quick   assembly system
13 Max   Load capacity 80kgs
14 Recommend   Table top size 1200*600,1400*700,1600*800
15 Desk   base color option Black/White/Grey
16 Package   Size 106*23*24cm
17 Weight(NW/GW) 22kgs/23kgs
18 One   pallet 16   sets/Pallet,106*92*108cm=1.06cbm,390kgs

Download this single motor standing desk base specification.
