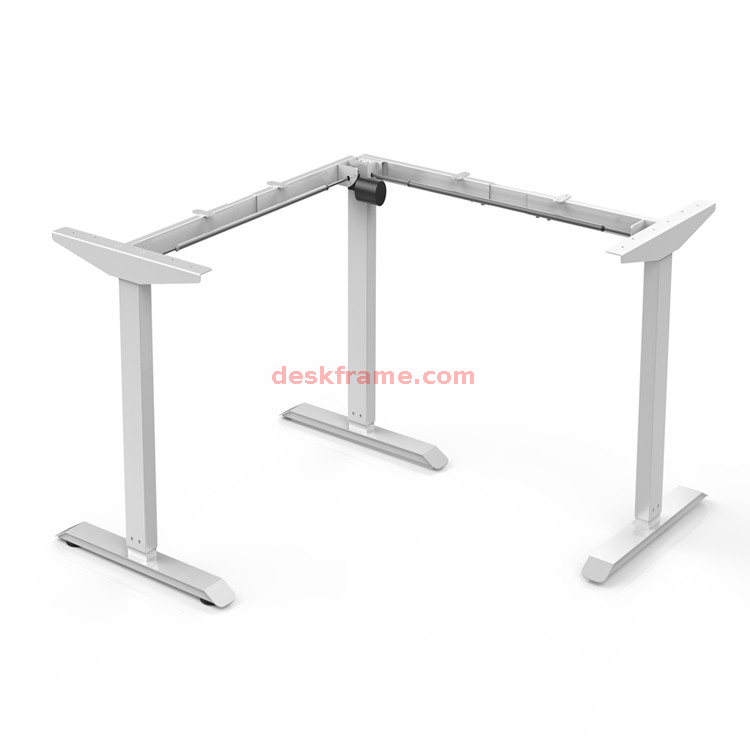

Corner Desk Frame 3 Legs 90 Angel

Corner Desk Frame 3 Legs 90 Angel is the first choice for executive desks and home office. L shaped shanding desk frame allows people to use L shaped and larger table top and make office space more larger. The width between each two columns of this adjustable corner desk frame can be adjusted from 43inch (1100mm) to 63inch (1600mm), and the height can be adjusted from 27.5inch (700mm) to 45inch (1150mm). We suggest to use table top with 160*140*70cm. Because only use a single motor to drive this height adjustable corner desk frame, it also has a very good cost performance. Zhiding Transmission produces entire series office standing desk and will give you best factory support. Bring this modern corner desk frame to people around you.Please contact us today!
Availability:
  • ZDTS-2

  • Zhiding





1 Model ZDTS-2
2 Number of Motor Single motor
3 Angel 90 angle
4 Lift Column 2 stage
5 Height   adjustable range 700-1150mm
6 Width   adjustable range 1100--1650mm(each side)
7 stroke 450mm
8 lifting   speed 18mm/s
9 Operation   noise ≦50db
10 Memory   Setting 4 Presets
11 Heat   protection yes
12 Product   Advantage Whole table stability   system
13 Main   feature Quick   assembly system
14 Max   Load capacity 80kgs
15 Recommend   Table top size 160*140*70cm
16 Desk   base color option Black/White/Grey
17 Package   Size 106.5*24.5*31cm
18 Weight(NW/GW) 32kgs/33.5kgs
19 One   pallet 16   sets/Pallet,107*98*136cm=1.43cbm,536kgs

Download this single motor standing desk base specification.
