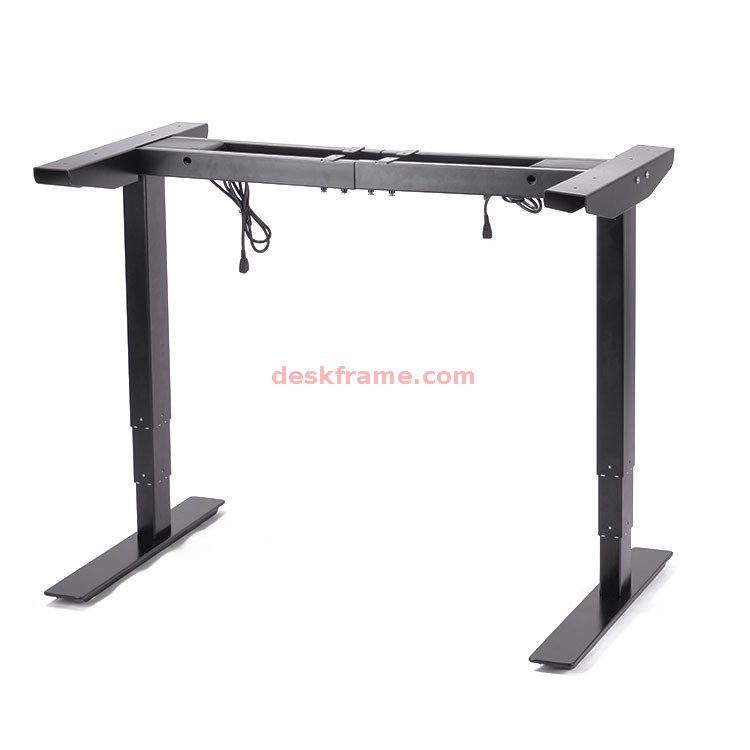

Desk Frame Legs Dual Motor 3 Stage

Desk Frame Legs for table is a very welcomed healthy office furniture.Dual motor 3 stage design makes it has a larger height and width adjustment. This desk frame legs allows staff to adjust from 56 to 121cm on height and from 100 to 180cm on width. and also it can match a larger table top to 100*200cm. The smart control system precisely controls the dual motors to run within +/-1mm.It assures the desk frame legs to operate stable and safe. Zhiding Transmission specialize in desk frame legs over 6 years. Our team are glad to serve you with first level products and most competitive rate. Contact us to customize the best desk frame legs with your logo and create your own brand.
Availability:
  • DTD-3

  • Zhiding



1 Model DTD-3
2 Number of Motor Dual motors
3 Lift Column 3 stages
4 Height   adjustable range 56-121cm (22” to 47.63")
5 Width   adjustable range 100--180mm  (39.4” to 71")
6 stroke 65mm
7 lifting   speed 35mm/s
8 Operation   noise ≦43db
9 Memory   Setting 3 Presets
10 Heat   protection yes
11 Product   Advantage Symmetric or Asymmetric design for option
12 Main   feature Smarter electric   control system
13 Max   Load capacity 100kgs
14 Recommend   Table top size 120*60,140*60,140*70,160*80 cm
15 Tabletop color&style Please contact us for tabletop brochure.
16 Desk   base color option Black/White/Grey
17 Package   Size 105*25*24 cm
18 Weight(NW/GW) 27/28kgs
19 One   pallet 16 sets/Pallet,
    105*100*108cm=1.15CBM,468kgs
