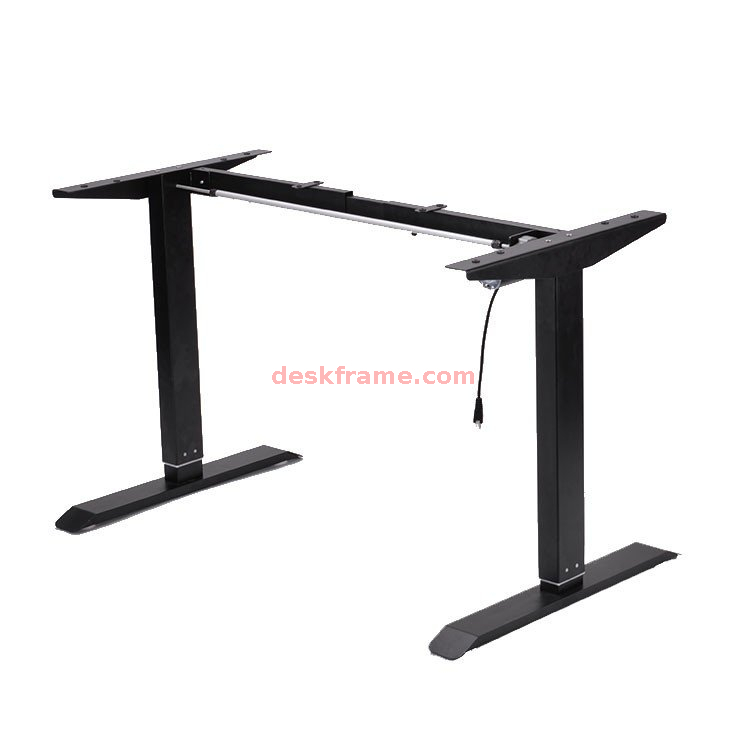

Electric Desk Base Single Motor

Electric Desk Base single motor is very popular in office or at home, It is a healthy office desk frame for DIY. The peculiarity of height adjustment of this electric desk base, makes people to work in different posture. This will help people to improve their health at work. whole table stabilization system: Newly designed structure in this electric desk base guarantees lateral stability while enhancing competitiveness. Optimized lifting speed of 18mm/s to ensure stable up and down. Quick assembly system: We opitimized the assembly process in this electric desk base. Pre-assembled screw technology supports simple and fast assembly for user. This will help greatly improve the user experience. This electric desk base can adjust height from 27.55” to 45.27" ; telescopic crossbars adjustable ragne is from 43.30” to 64.96”. If you want electric desk bse only, Zhiding Transmission will provide best factory support.Contact us to expand your business today!
Availability:
  • ZDTD-2

  • Zhiding





1 Model ZDTD-2
2 Number of Motor Single motor
3 Lift Column 2 segments
4 Height   adjustable range 700-1150mm
5 Width   adjustable range 1100--1650mm
6 stroke 450mm
7 lifting   speed 18mm/s
8 Operation   noise ≦50db
9 Memory   Setting 4 Presets
10 Heat   protection yes
11 Product   Advantage Whole table stability   system
12 Main   feature Quick   assembly system
13 Max   Load capacity 80kgs
14 Recommend   Table top size 1200*600,1400*700,1600*800
15 Desk   base color option Black/White/Grey
16 Package   Size 106*23*24cm
17 Weight(NW/GW) 22kgs/23kgs
18 One   pallet 16   sets/Pallet,106*92*108cm=1.06cbm,390kgs

Download this single motor standing desk base specification.
