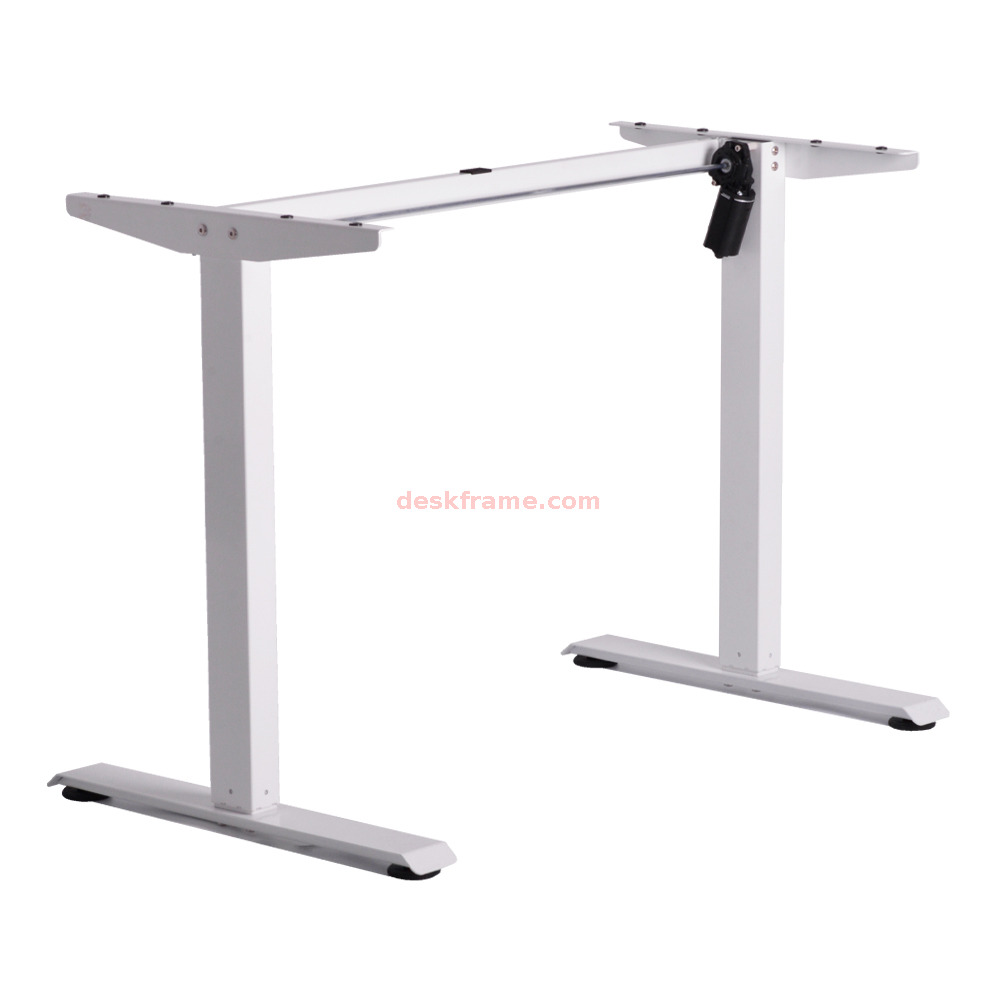

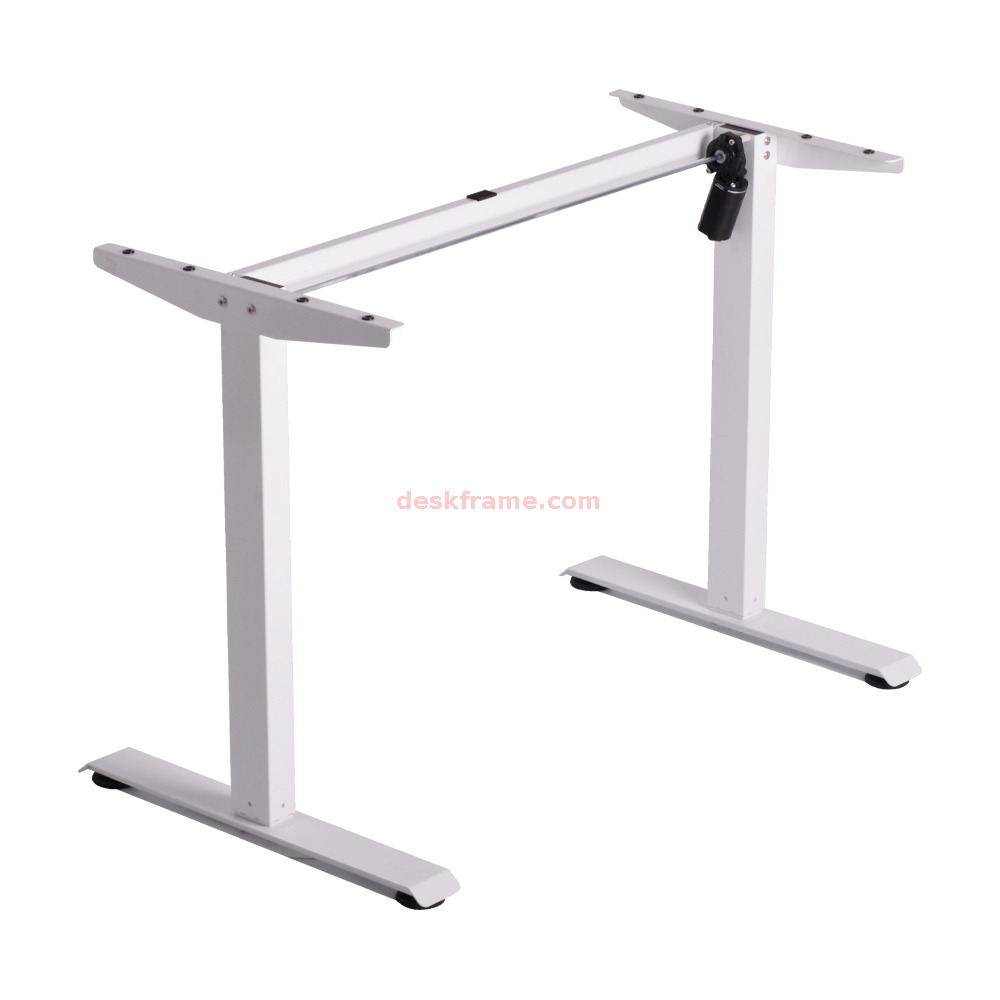

Electric Height Adjustable Standing Desk Frame Sit-Stand Desk Frame for Home Office, Sloped Ergonomic Front Edge, Stable T-Style Legs, Easy Assembly


Customized Ergonomic Height: 75-115cm - With a smooth electric lifting system and a user-friendly LED control panel with 4 memory functions, our height-adjustable desk offers individual options for optimal comfort. You can seamlessly switch between sitting and standing with a single pressure.
Improved stability and safety - Our computer desk has been designed to hold a weight of up to 80 kg and uses a thick aluminium lifting frame connected to thick composite worktop. The table also passes the amazing 50,000 lifting tests, ensuring years of reliable use.
Stylish and organised work surface - With optional desktopp, our spacious worktop offers enough space for your computer and other important things. With thoughtful design, including 2 cable grommets and 2 hooks, it keeps your work surface tidy and without clutter. The perfect companion for enhancing home, office or any other work surface.
High-quality and quiet motor – the lifting movement glides like silk and works with an extremely low noise level of ≤50 db. This ensures a quiet and distraction-free working environment, so you can fully focus on your tasks, whether you work, play or learn.
Optimised assembly - Experience a hassle-free setup process with our comprehensive yet concise installation guide and cleverly numbered accessories. You can do the assembly quickly and easily on your own. In addition, we are committed to environmental protection and use high-quality, recyclable packaging to guarantee sustainability.
Availability:
  • ZDTD-2VX-W3

  • ZHIDING

1NameSingle Motor Height Adjustable Desk

2

Code

ZDTD-2VX-3

3

Number of Motor

Single motor

4

Lifting Column

2 stage Rectangle reserved lifting column
Outside tube:65*45mm inner tube:60*40mm 厚度1.2mm

5

Height adjustable range/ stroke

700-1150mm/ 450mm

6

Duty Circle

10%,Max 2 min on,18 min off.

7

Telescopic desk frame range

950mm Fixed

8

lifting speed

20mm/s

9

Noise Level

≦50db

10

Memory Setting

2 button keys

11

Overload protection

yes

12

Thermal protection

yes

13

Anti-collision

yes

14

Max Load capacity

70-80kgs

15

Optional desk base color

Black/White/Grey( silver)

16

Tabletop size

One piece of board,120*60*1.8/1.5

17

Weight(NW/GW)

24KGS/26KGS

18

Package & Size

Desk frame pack with tabletop together,Carton:  126*66*12cm

22

Foot size & Thickness

Anti-kick,580*70*35(with foot pad),T=2mm

24

Side bracket length & thickness

470*30*2.5mm

26

Power

29V 2A
