ZDTD-2VX-GD2
ZHIDING

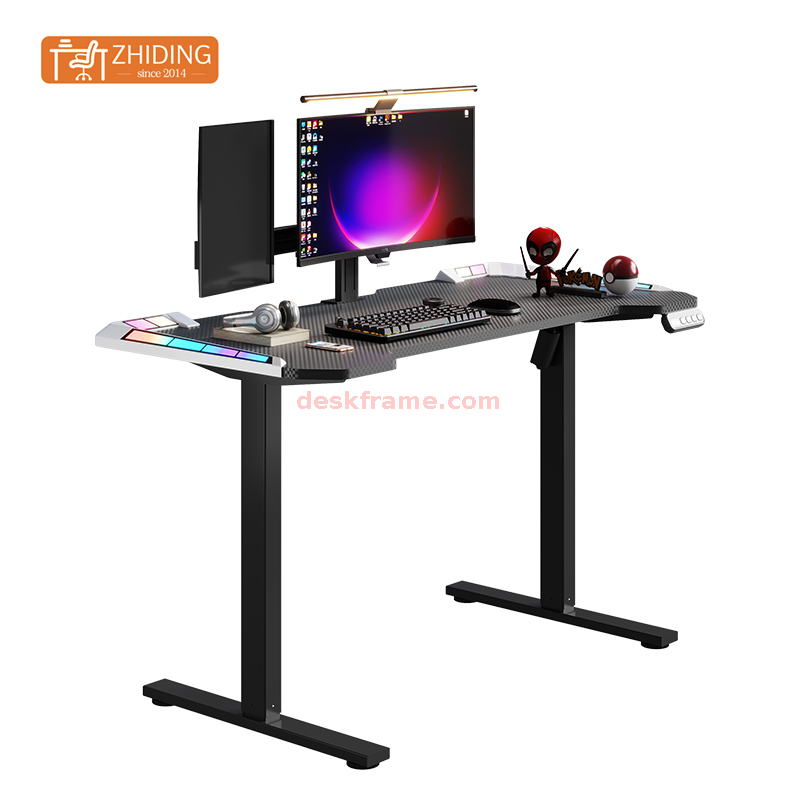

| 1 | Name | Gaming Desk |
2 | Code | ZDTD-2VX-GD2 ZDTD-2VXJ2-W8-950-U |
3 | Number of Motor | Single motor |
4 | Lifting Column / Legs | 2 stage Rectangle reserved lifting column |
5 | Height adjustable range/ stroke | 700-1150mm/ 450mm |
6 | Duty Cycle | 10%,Max 2 min on,18 min off. |
7 | Telescopic frame range | 950mm Fixed （fit 100-120cm tabletop） |
8 | lifting speed | 17-20mm/s |
9 | Noise Level | ≦50dB |
14 | Max Load capacity | 70kgs |
22 | Foot size & Thickness | steel-tube foot，580*60*20 |
24 | Side bracket length & thickness | 470*30*2.5mm |
26 | power | 29V 2A |

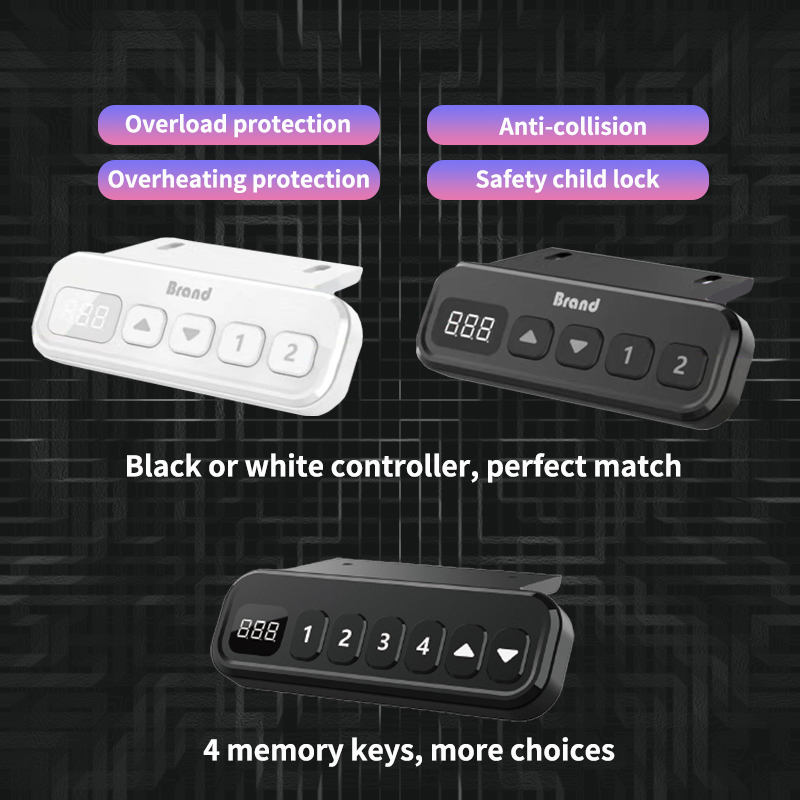

10 | memory set | 2/3/4 memory set |
10 | Memory Setting | 2/3/4 button keys press controller |
11 | Overload protection | yes |
12 | (Overhot) Thermal protection | yes |
13 | Anti-collision | yes |
15 | Optional desk base color | Black RAL9005 /White RAL 9016 /Grey RAL7045 |
17 | Weight(NW/GW) | 13KGS/15KGS |
18 | Main feature | small,affordable |
19 | Package & Size | Only deskframe：990*301*13cm |
