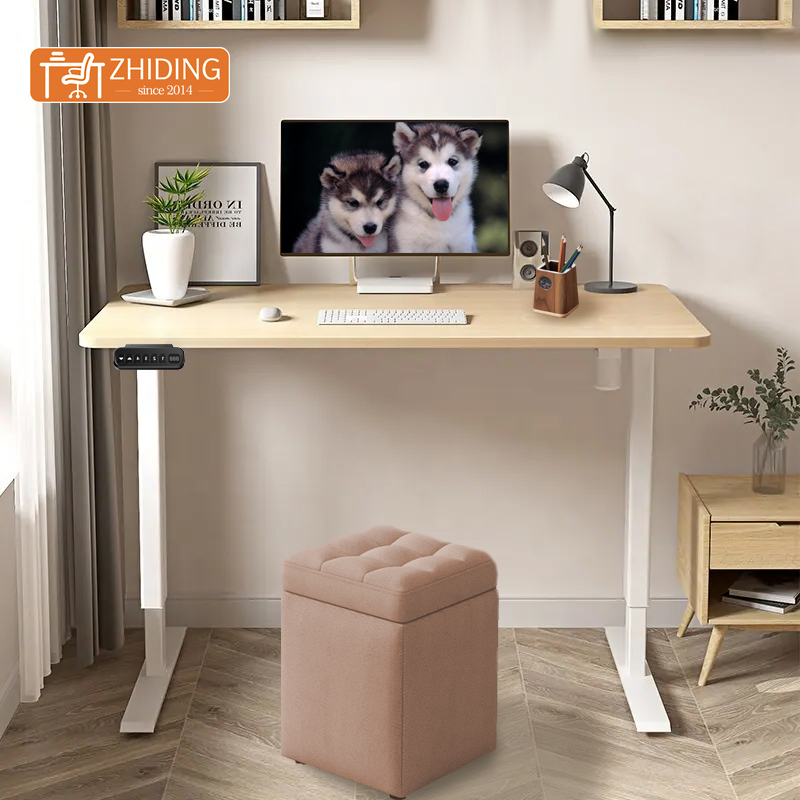

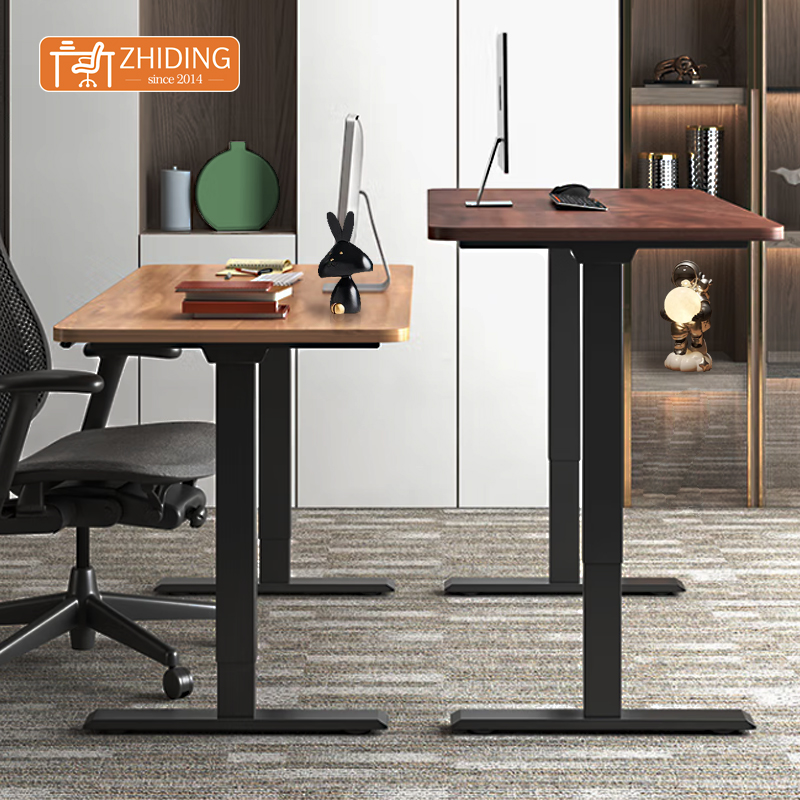

Single Motor Height Adjustable Desk

Smart height adjustable desk makes the office experience healthier and more comfortable. This small electric standing desk is height-adjustable, with a single motor drive and symmetrical structural design, and has a compact and beautiful appearance. The panel is installed in one piece, the appearance is more beautiful, with higher structural integrity and durability, and it is easy to clean. There are two memory keys, which are quick and convenient. The friendly oblique blocking and anti-kick design provides users with a safe and reliable experience at an affordable price.This Single Motor Stand Up Desk is equipped with anti-collision to make lifting saferAnti-collision; the quick assembly system is an additional product feature. The 110V-240V wide voltage design ensures that customers from any country can use it.
As a commercial use of home office furniture, this is a very cost-effective height-adjustable desk base. Welcome to contact us for a quote.
Availability:
  • ZDTD-2VX-W3

  • ZHIDING

1NameSingle Motor Height Adjustable Desk

2

Code

ZDTD-2VX-3

3

Number of Motor

Single motor

4

Lifting Column

2 stage Rectangle reserved lifting column
Outside tube:65*45mm inner tube:60*40mm 厚度1.2mm

5

Height adjustable range/ stroke

700-1150mm/ 450mm

6

Duty Circle

10%,Max 2 min on,18 min off.

7

Telescopic desk frame range

950mm Fixed

8

lifting speed

20mm/s

9

Noise Level

≦50db

10

Memory Setting

2 button keys

11

Overload protection

yes

12

Thermal protection

yes

13

Anti-collision

yes

14

Max Load capacity

70-80kgs

15

Optional desk base color

Black/White/Grey( silver)

16

Tabletop size

One piece of board,120*60*1.8/1.5

17

Weight(NW/GW)

24KGS/26KGS

18

Package & Size

Desk frame pack with tabletop together,Carton:  126*66*12cm

22

Foot size & Thickness

Anti-kick,580*70*35(with foot pad),T=2mm

24

Side bracket length & thickness

470*30*2.5mm





26

电源适配器功率

29V 2A
