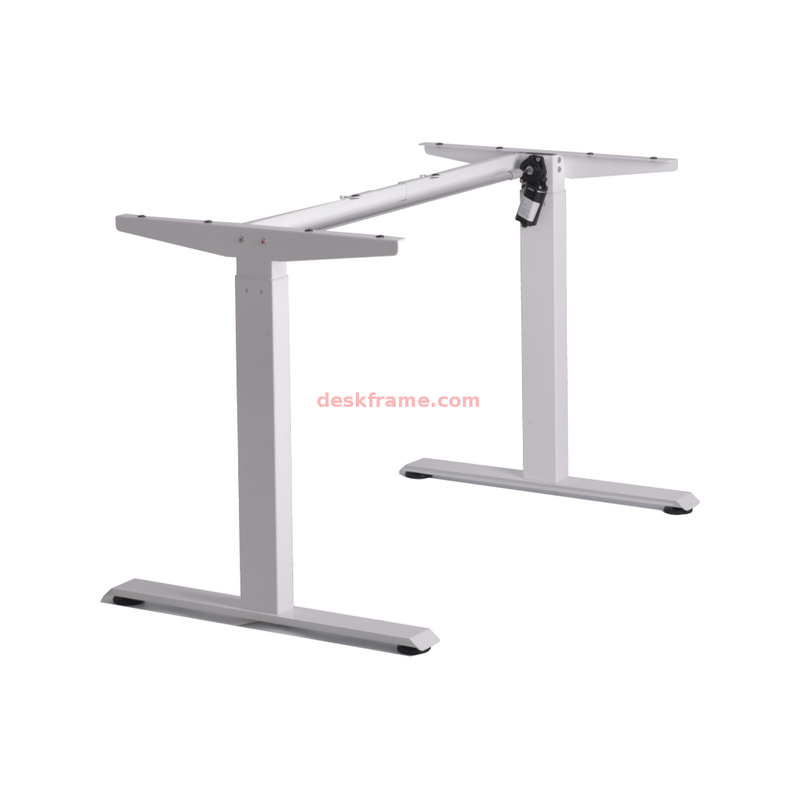

Height Adjustable Frame Single Motor

Height Adjustable Frame is a revolutionizing office table frame. It provides a perfect workspace solution for a coworking office space. The characteristic of height adjustment of this electric height adjustable frame, It makes it possible for people to work in different positions. This will help people to improve their health at work. whole table stabilization system: Newly designed structure in this motorized height adjustable frame guarantees lateral stability, while enhancing competitiveness. Optimized lifting speed of 18mm/s to ensure stable up and down. Quick assembly system: We opitimized the assembly process in this electric height adjustable frame. Pre-assembled screw technology supports simple and fast assembly for user. This will help greatly improve the user experience. The electric height adjustable frame can adjust height from 70 to 115 cm ; telescopic crossbars adjustable ragne is from 110 to 165 cm; Contact us today!
Availability:
  • ZDTZ-2VJ

  • Zhiding





1 Model ZDTZ-2VJ
2 Number of Motor Single motor
3 Lift Column 2 stages
4 Height   adjustable range

700-1150mm

 27.55” to 45.27"

5 Width   adjustable range

1100--1650m

m43.30” to 64.96”

6 stroke 450mm
7 lifting   speed 18mm/s
8 Operation   noise ≦50db
9 Memory   Setting 4 Presets
10 Heat   protection yes
11 Product   Advantage Whole table stability   system
12 Main   feature Quick   assembly system
13 Max   Load capacity 80kgs
14 Recommend   Table top size 120*60,140*60,140*70,160*80 cm
15 Tabletop color&style Please contact us for brochure
15 Desk   base color option Black/White/Grey
16 Package   Size 106*23*24cm
17 Weight(NW/GW) 22kgs/23kgs
18 One   pallet 16   sets/Pallet,106*92*108cm=1.06cbm,390kgs

Download this single motor standing desk base specification.
