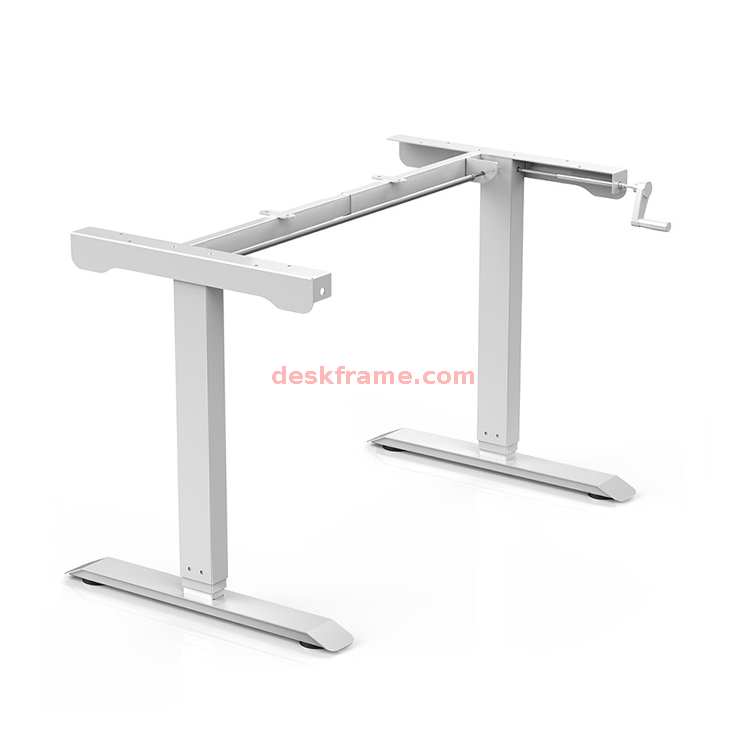

Manual Height Adjustable Desk Frame

Manual Adjustable Desk Frame is a desk base with modern design and best cost performance. It is the best choice for public institutions like libraries and schools. Also it is suitable for home office. This manual height adjustable desk frame can adjust height range is from 27.55” to 45.27” ; telescopic crossbars adjustable ragne is from 43.30” to 64.96”. Recommended tabletop size: 120*60,140*60,150*60,140*70,160*80 cm. HAND CRANK SYSTEM - Simple crank system using minimal effort to adjust to your desired sitting and standing height. TELESCOPIC HEIGHT ADJUSTMENT - The strong legs use telescopic adjustment transitioning from sitting to standing in no time. Standing desk is a trendy office furniture. Contact us to bring this manual adjustable desk frame to people around you. Contact us today!
Availability:
  • ZDTD-2S

  • Zhiding



Specification
1  Name Hand Crank Standing Desk Frame
2  Code ZDTD-2S
3  Drive Method Hand Crank
4  Lift Column 2 stage
5  Height adjustable range 700-1150mm (27.55" to 45.3")
6  Frame adjustable range  1100--1650mm(43.3" to 64.9")
7  Optimized lifting speed  10mm/R
8  Operation noise  less than 50dB
9  Max Load capacity 80kgs
10  Frame color Black/White/Grey/Yellow
11  Table top recommend 120*60, 140*60,150*60,140*70,160*80 cm
12  Table top corner shape Right angle/ Round angle
13  Table top color option Contact us for color and style
We support   you to customize your ideal adjustable desk frame as per various functions which consumers want.
