ZDTD-2VX-W4
ZHIDING

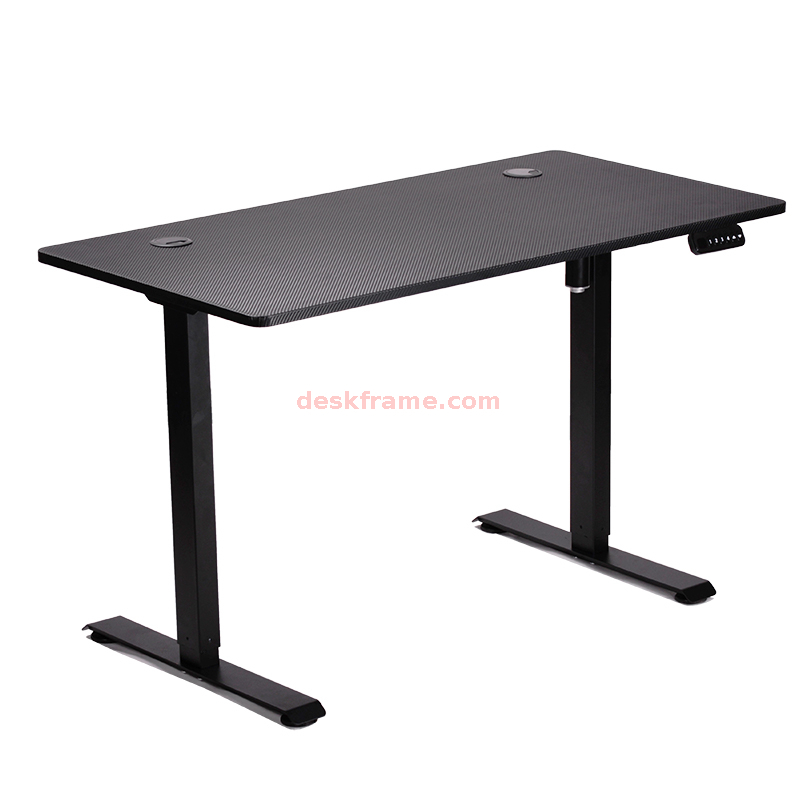

1 | Name | Single Motor Height Adjustable Desk |
2 | Code | ZDTD-2VX -W4 |
3 | Number of Motor | Single motor |
4 | Lifting Column | 2 stage Rectangle reserved lifting column |
5 | Height adjustable range/ stroke | 700-1150mm/ 450mm |
6 | Duty Circle | 10%,Max 2 min on,18 min off. |
7 | Telescopic frame range | 950-1400mm extendable（fit 1000-1600mm tabletop） |
8 | lifting speed | 20mm/s |
9 | Noise Level | ≦50db |
10 | Memory Setting | 2/3/4 button keys |
11 | Overload protection | yes |
12 | (Overhot) Thermal protection | yes |
13 | Anti-collision | yes |
14 | Max Load capacity | 70-80kgs |
15 | Optional desk base color | Black RAL9005 /White RAL 9016 /Grey RAL7045 |
17 | Weight(NW/GW) | 18KGS/19KGS |
18 | Package & Size | Only deskframe：101*30*13.5mm |
22 | Foot size & Thickness | Anti-kick foot，600*70*35(with foot pad)，T=2mm |
24 | Side bracket length & thickness | 470*31*2.5mm |
25 | Motor power | 50W 3300转 |
26 | power | 29V 2A |
1 | Name | Single Motor Height Adjustable Desk |
2 | Code | ZDTD-2VX -W4 |
3 | Number of Motor | Single motor |
4 | Lifting Column | 2 stage Rectangle reserved lifting column |
5 | Height adjustable range/ stroke | 700-1150mm/ 450mm |
6 | Duty Circle | 10%,Max 2 min on,18 min off. |
7 | Telescopic frame range | 950-1400mm extendable（fit 1000-1600mm tabletop） |
8 | lifting speed | 20mm/s |
9 | Noise Level | ≦50db |
10 | Memory Setting | 2/3/4 button keys |
11 | Overload protection | yes |
12 | (Overhot) Thermal protection | yes |
13 | Anti-collision | yes |
14 | Max Load capacity | 70-80kgs |
15 | Optional desk base color | Black RAL9005 /White RAL 9016 /Grey RAL7045 |
17 | Weight(NW/GW) | 18KGS/19KGS |
18 | Package & Size | Only deskframe：101*30*13.5mm |
22 | Foot size & Thickness | Anti-kick foot，600*70*35(with foot pad)，T=2mm |
24 | Side bracket length & thickness | 470*31*2.5mm |
25 | Motor power | 50W 3300转 |
26 | power | 29V 2A |
