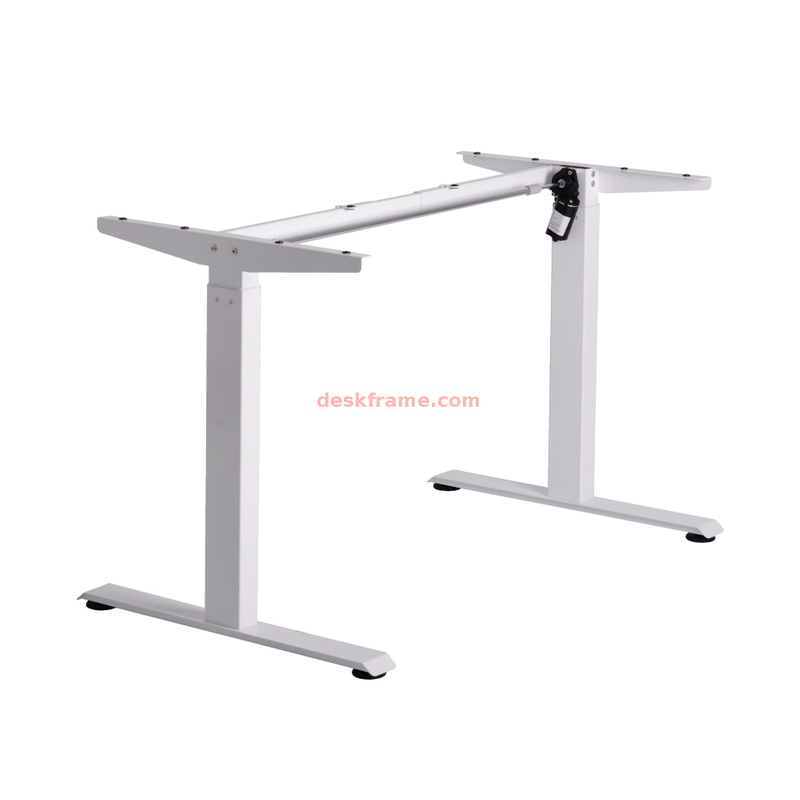

Sit Stand Frame Single Motor

Sit stand frame for desk is a modern office table base. It is a welcomed office furniture at current. The superiorty of height adjustment of this electric sit stand frame, is diferent with traditional office desk. It makes staffs to work sit or stand alternately. This will improve employee’s work pleasure. whole table stabilization system: Newly designed structure in this motorized sit stand frame guarantees lateral stability, while enhancing competitiveness. Optimized lifting speed of 18mm/s to ensure stable up and down. Quick assembly system: We opitimized the assembly process in this electric sit stand frame. Pre-assembled screw technology supports simple and fast assembly for user. This will help greatly improve the user experience. The motorized sit stand frame can adjust height from 70 to 115 cm ; telescopic crossbars adjustable ragne is from 110 to 165 cm; As a manufacturer of sit stand frame for desk, Zhiding will provide best factory support with you.
Availability:
  • ZDTZ-2VJ

  • Zhiding





1 Model ZDTZ-2VJ
2 Number of Motor Single motor
3 Lift Column 2 stages
4 Height   adjustable range

700-1150mm

 27.55” to 45.27"

5 Width   adjustable range

1100--1650m

m43.30” to 64.96”

6 stroke 450mm
7 lifting   speed 18mm/s
8 Operation   noise ≦50db
9 Memory   Setting 4 Presets
10 Heat   protection yes
11 Product   Advantage Whole table stability   system
12 Main   feature Quick   assembly system
13 Max   Load capacity 80kgs
14 Recommend   Table top size 120*60,140*60,140*70,160*80 cm
15 Tabletop color&style Please contact us for brochure
15 Desk   base color option Black/White/Grey
16 Package   Size 106*23*24cm
17 Weight(NW/GW) 22kgs/23kgs
18 One   pallet 16   sets/Pallet,106*92*108cm=1.06cbm,390kgs

Download this single motor standing desk base specification.
