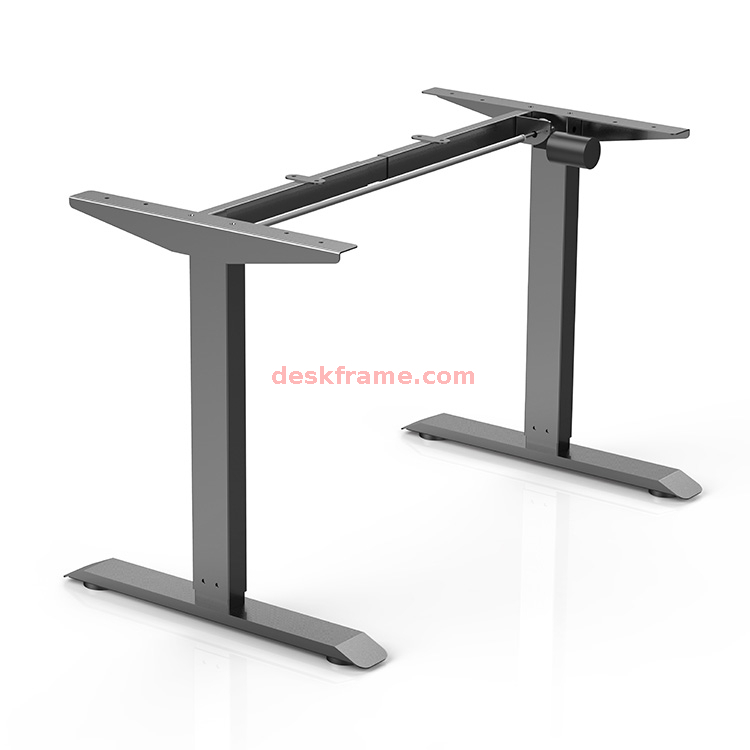

Standing Desk Base Single Motor

The standing desk base single motor adopts a single motor and a push rod to drive the two lifting columns, make it to rise or fall simultaneously. This type of electric standing desk base has been optimized, and its stability and running performance can fully meet the daily office use. And, because only one motor is used, the standing desk base only has a higher cost performance. The below is main feature of this adjustable standing desk base single motor: Newly designed structure guarantees lateral stability; Optimized lifting speed to ensure stable up and down 18mm/s; Pre-assembled screw technology supports simple and fast assembly; Freely adjust the height, width can be adjusted or fixed design; Lower operation noise less than 50db. It is suitable to match big range of size table top. As a manufacturer of best standing desk base, Zhiding team are ready to provide our service with you. Contact us to expand your business today!
Availability:
  • ZDTD-2

  • Zhiding





1 Model ZDTD-2
2 Number of Motor Single motor
3 Lift Column 2 segments
4 Height   adjustable range 700-1150mm
5 Width   adjustable range 1100--1650mm
6 stroke 450mm
7 lifting   speed 18mm/s
8 Operation   noise ≦50db
9 Memory   Setting 4 Presets
10 Heat   protection yes
11 Product   Advantage Whole table stability   system
12 Main   feature Quick   assembly system
13 Max   Load capacity 80kgs
14 Recommend   Table top size 1200*600,1400*700,1600*800
15 Desk   base color option Black/White/Grey
16 Package   Size 106*23*24cm
17 Weight(NW/GW) 22kgs/23kgs
18 One   pallet 16   sets/Pallet,106*92*108cm=1.06cbm,390kgs

Download this single motor standing desk base specification.
