Views: 69 Author: Kevin Yuan Publish Time: 2020-09-07 Origin: deskframe.com
In our work, we met many customers who contact the standing desk frame first time. But they are very concerned about the product, because of its ergonomic and healthy, it is more and more popular among people. They want to enter into this field, but they met problems while studying the standing desk. Actually, the electric standing desk frame can be divided into two types, one is the single motor standing desk frame, and the other is dual motor standing desk frame. What is the difference between these two desk frames? Let me explain to you one by one using the products of Zhiding Transmission.
Before analyzing the differences in detail, let us understand a few specification terms.
1. Adjustable height and stroke
Adjustable height is the main function of the standing desk base, used to measure the upper and lower limits and range of the adjustable height of a standing desk base.
2. Adjustable width (telescopic crossbars )
The width of the standing desk frame can be made fixed or adjustable. Adjustable width of the standing desk frame allows to use different specifications of the desktop. The adjustable width of the Zhiding ZDTZ-2V single-motor standing desk frame is 1100~1650mm(43.30” to 64.96”); the telescopic crossbars of the DTZ-2 dual-motor standing desk frame is 1000~1800mm(39.4” to 71"). The recommended desktop size is 120*60, 140*60, 140*70, 160*80, 200*100cm.
3. Lifting speed
The lifting speed of the electric standing desk is determined by the motor, the reduction gear and the thread pitch of the screw rod and the nut. It does not mean that lifting speed fast is good, slow is bad.
4. Noise level
Whether it is a single motor standing desk base or a double motor standing desk base, there must be noise,because it is driven by a motor. In actual use, this noise is equivalent to a very slight sound, which is completely acceptable.
5. Max load capacity
According to different desk frame structure, thread pitch of screw nut and column number, each type of standing desk frame has different load-bearing range.
6. Running vibration
There will be varying degrees of vibration when the motor is running. Regardless of the single motor or double motor standing desk frame, the vibration during operation is kept within a very reasonable range. Relatively speaking, the vibration of the dual motor is smaller than the vibration of the single motor. However, if you have a taste, the operating vibration of the single motor standing desk frame is also very small.

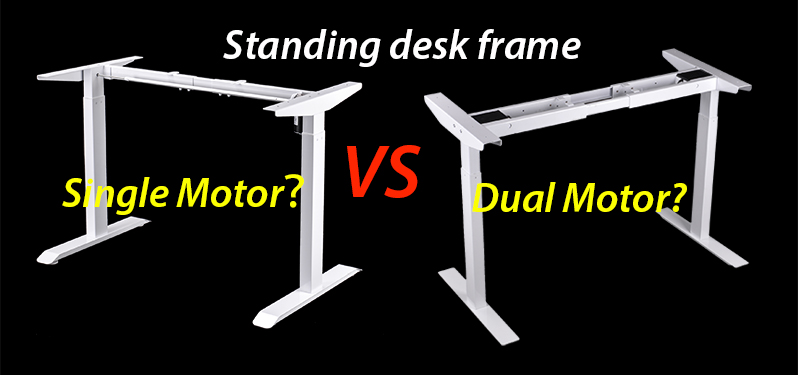

Next, after we know these main specification terms, let us discuss the differences between single motor VS dual motor standing desk frame.

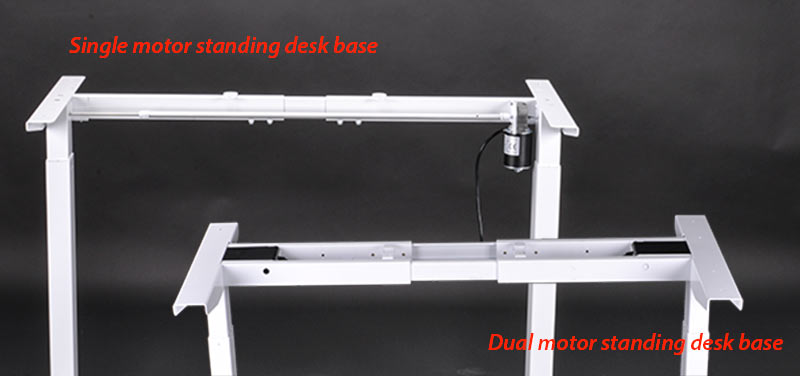

The transmission mode of the single motor standing desk base and the dual motor standing desk is the same, but the structure is slightly different. Knowing this will help you truly understand the differences in products. So, where is their difference?

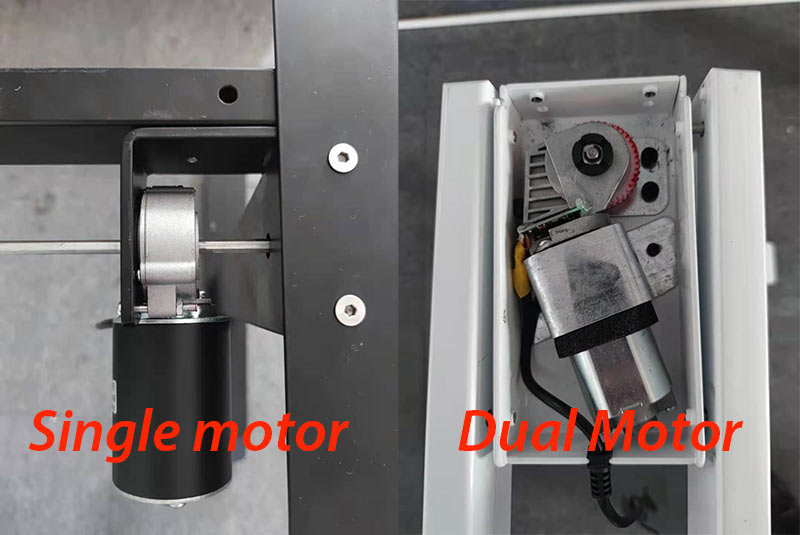

The driving part of the single motor standing desk base is divided into a DC motor, hex rods (telescopic tube) and lifting columns.
After the DC motor is energized and started to run, the reduction gear at the head rotates synchronously. The lifting column that is closer is directly connected to the motor through a short hex rod; the lifting column that is far away is connected to the motor through a longer hex rod and a telescopic tube.
The driving part of the double-motor standing desk frame is divided into two DC motors, two hex rods and two lifting columns. The difference is that each motor respectively close to each lifting column, and each motor is directly connected to a lifting column through a hex rod. There is no telescopic tube in the middle to connect the hexagonal bars at both ends.
The standing desk frame can adjust the height and width, which is the main feature of the adjustable desk, and also the difference compared to the traditional table.
Each standing desk frame produced by a manufacturer has its own range of adjustment height and width.
The adjustable height of Zhiding ZDTD-2 single-motor standing desk base is 700-1150mm(27.55” to 45.27”); the stroke is 450mm(17.71”).
The adjustable height of Zhiding DTZ-2 dual-motor standing desk base is also 700-1150mm(27.55” to 45.27”); the stroke is 450mm(17.71”).
The adjustable height of Zhiding DTD-3 dual-motor standing desk base is 560-1210mm(22” to 47.63”), and the stroke is 650mm(25.59”).
According to the design and style of standing desk frame. The lifting speed varies from 18 mm to 35 mm per second. It can change from a sitting position to a standing position in a short time, so I personally think that is not a very important aspect to decide which is better.
The lifting speed of the ZDTD-2V single-motor standing desk frame is 18mm/s;
The speed of Zhiding DTZ-2 dual-motor standing desk frame is 20mm/s;
The speed of Zhiding DTD-3 dual-motor standing desk frame is 35mm/s.
As mentioned above, according to the different table frame structure, the thread pitch of the screw nut and the number of columns, each type of standing desk base has a different max load capacity.
The load capacity of the ZDTZ-2V single-motor standing desk base is 80kgs;
Zhiding DTZ-2 dual-motor standing desk base load is 100kgs;
Zhiding DTD-3 dual-motor standing desk base load is 120kgs;
According to the structure of the single motor and double motor standing desk frame and the different parts used, the cost of the product is different.
The single-motor standing desk frame is driven by only one motor and a support beam, which makes it a very superior cost-effective product. It is the most price-competitive product among electric standing desks.
The dual-motor 2 stage standing desk frame adopts two motors for driving and dual support beams, making its structure look very stable and beautiful, and it is a higher-level standing desk product.
The double-motor 3-stage standing desk frame uses the same motor and double support beam as the 2 stage desk frame. The structure is also very sturdy and beautiful. Because there is a larger height adjustment range, it increases the cost, but it is most suitable for consumers who have a greater adjustment height demand.
The above are some of the main differences between single-motor standing desk frame and dual-motor standing desk frame. I believe you have a deep understanding of the two types of sit stand desk through these comparisons.
Zhiding transmission as a manufacturer of adjustable desk, our products cover a full range of office furniture and kids study desk. We are willing to work with you to bring our excellent products to your local market and strikes for healthy life for people.
